MasterSizer 3000

MasterSizer 3000

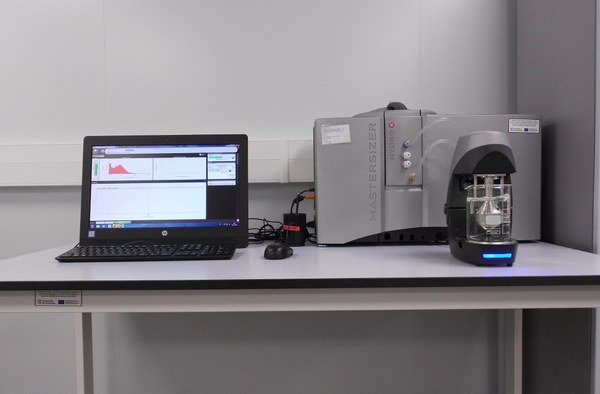

The MasterSizer 3000 equipment from Malvern Panalytical is a particle size analyzer which uses laser diffraction to infer the size of particles. It measures the intensity of laser light scattered by a dispersion of particulate sample. The data is then analyzed to calculate the size of the particles that created the scattering pattern. More information about the instrument can be found here.

Key features

  • Particle size in suspensions only
  • Mie and Fraunhofer scattering analysis
  • Log-spaced detector array with 0.015-144° angular range
  • Particle size range: 0.01 - 3500 um
  • Accuracy: < 0.6%
  • Two laser sources: 4mW He-Ne at 632.8nm, 10mW LED laser at 470 nm
  • Hydro EV wet dispersion unit with up to 3500 rpm stirrer and 40W in-line sonication probe

Contact

In order to book the equipment, please contact Trifon Trifonov ()
