RAMAN Microscope

RAMAN Microscope

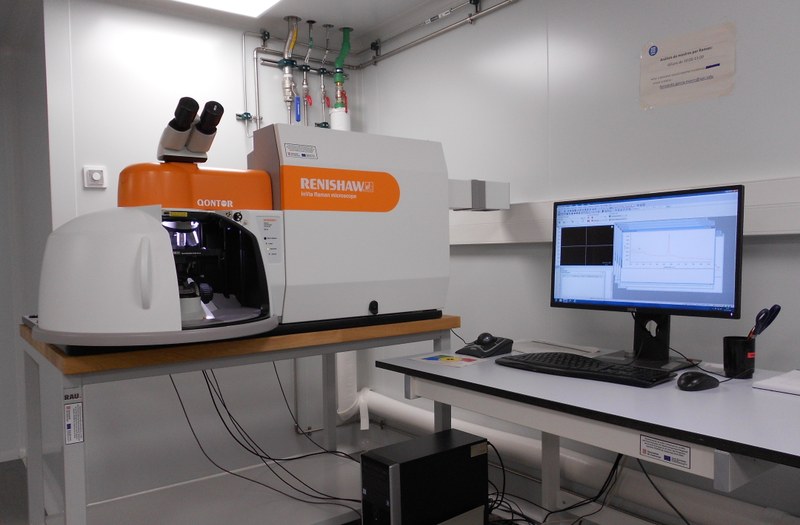

The general aim of Raman spectroscopy is to analyze the Raman scattered light and infer from it as much as possible about the chemistry and structure of the samples. The micro-Raman spectroscopy System at Barcelona Research Center in Multiscale Science and Engineering can handle a wide range of sample types, sample sizes and resolution requirements. Renishaw’s inVia Qontor Raman microscope and its Windows-based Raman Environment (Wire™) software are powerful for manual measurements of points on the samples, mapping and imaging capabilities.

Key features

  • Three monochromatic light sources: visible laser at 532 nm with a nominal 100 mW output power; visible laser at 633 nm with a nominal 17 mW output power; and infrared laser at 785 nm with a nominal 300 mW output power
  • Specially adapted Leica DM2700 M microscope allowing confocal measurements with 5x, 20x, 50x and 100x objectives
  • Motorized XYZ stage
  • LifeTrack technology for rough and curved surfaces
  • RAMAN spectrometer with motorized pinhole, 1200 lines/mm grating, 1800 lines/mm grating; and 2400 lines/mm visible grating, Peltier cooled CCD array detector (1024x256 pixels).
  • Linkam THMS600 temperature controlled stage with a temperature range of -195ºC to 600ºC, maximum heating rate 150ºC/min, and an aperture hole of 2 mm. It is useful for a range of applications where high heating/freezing rates and accuracy of 0.01ºC are required.

Contact

In order to book the equipment, please contact Xènia Garcia de Andrés ().
